AX Hub Kit (433MHz)
- Supports up to 32 wireless inputs, 4 wireless output expanders
- Offers multiple communication methods: LAN + Wi-Fi + GPRS
- Up to 2-ch. on-board video verification
- Offers reliable protection utilizing two-way wireless technology
- Wireless connection reduces installation time
- Communicates up to 800 m (in open areas)
- Contains DS-PWA32-HG (White, 433MHz) x 1

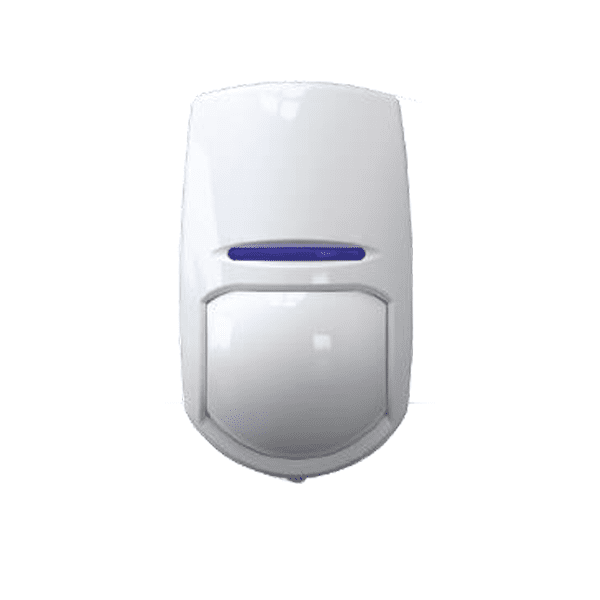

- DS-PD2-P10P-W x 1

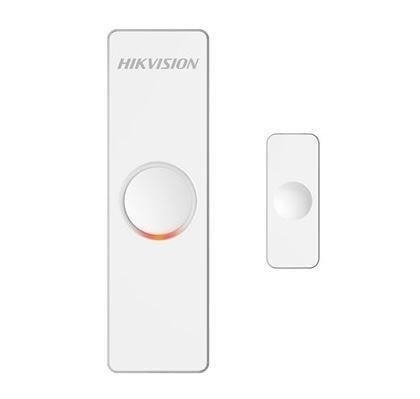

- DS-PD1-MC-WWS x 1

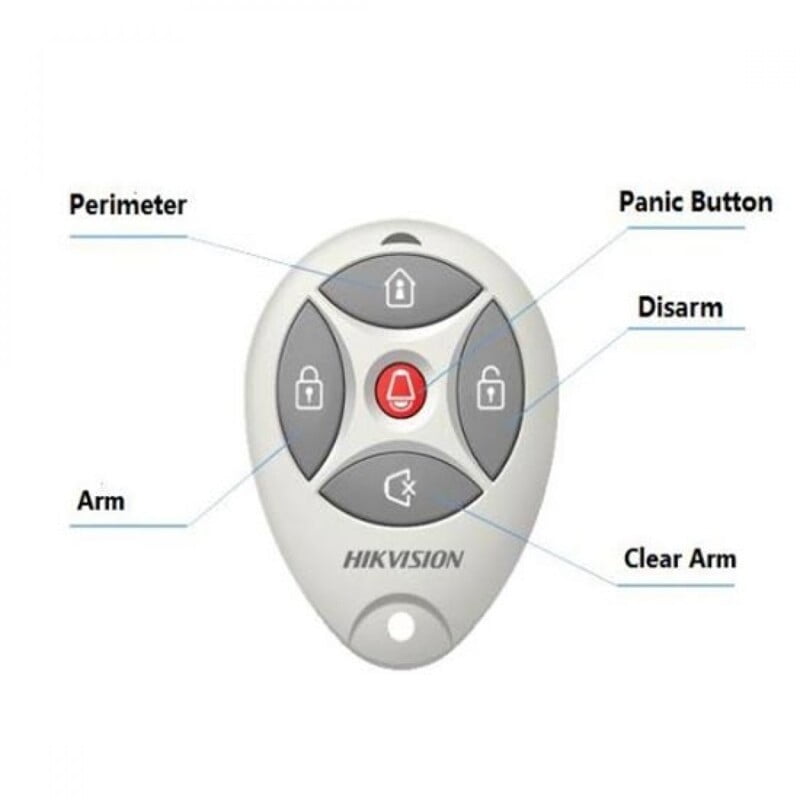

- DS-19K00-Y x 1
Specification
- Detection Performance
- Detection Range10m(DS-PD2-P10P-W(433MHz))
- Detection Angle85°(DS-PD2-P10P-W(433MHz))
- Velocity Range0.3m/s ~ 3.0m/s(DS-PD2-P10P-W(433MHz))
- Pet Immunity24kg(DS-PD2-P10P-W(433MHz))
- Software Features
- Partition4
- Onboard Video ClipsUp to 2-ch onboard video
- Tamper-ProofTampering alarm(DS-PWA32-HS(433MHz) Front, rear, and bracket tamper signal input(DS-PD2-P10P-W(433MHz)) Front and rear(DS-PD1-MC-WWS(H)(433M)）
- ScheduleAuto Arm/Disarm Schedule
- SMS NotificationSupport
- Phone Call NotificationSupport
- Phone Numbers8
- Signal Strength IndicationSignal Strength Indicators (SSI)
- Firmware Undate ToolsWeb client / iVMS-4200 / Hik-Connect
- Configuration ToolsWeb client / iVMS-4200 / Hik-Connect
- ApplicationiVMS-4200, and mobile APP
- ProtocolSIA – Contact ID; EHome v5.0
- User13 (1 installer, 1 administrator, and 11 general user)
- Hardware Features
- Alarm Input32
- Alarm Output32
- IndicatorLED
- RF Transmission
- RF Frequency433MHz
- RF Modulation2GFSK(DS-PWA32-HS(433MHz)） FSK(DS-19K00-Y(433MHz)）
- RF Speed10kbps（DS-19K00-Y(433MHz)、DS-PD1-MC-WWS(H)(433M)）
- RF Range800m (Open Area)(DS-PWA32-HS(433MHz)、DS-PD2-P10P-W(433MHz))、DS-PD1-MC-WWS(H)(433M)）300m (Open area)（DS-19K00-Y(433MHz)）
- Electrical Characteristics
- Power Supply5 VDC，10 W(DS-PWA32-HS(433MHz) CR2032 3.0V, 2-year power supply（DS-19K00-Y(433MHz)）
- Battery Type4520 mAh lithium backup battery(DS-PWA32-HS(433MHz) 1×CR123A(DS-PD2-P10P-W(433MHz)) 1×CR123A, 3.0V(DS-PD1-MC-WWS(H)(433M)）,CR2032 3.0V(DS-19K00-Y(433MHz))
- Battery Life SpanRechargeable lithium battery, supports up to 12h power supply(DS-PWA32-HS(433MHz) 2 years Battery life (DS-PD2-P10P-W(433MHz)、(DS-PD1-MC-WWS(H)(433M)）、（DS-19K00-Y(433MHz)）
- Power Consumption< 5.6 W
- Wireless Transmission
- Wired Network10M/100M Self-adaptive
- Network EncryptionAES-128 encryption
- Cellular NetworkGPRS
- Wi-Fi Standard802.11b/g/n
- Wi-Fi EncryptionSupported
- Wi-Fi Channel2.4 G
- General
- Operation Temperature–10 °C to 55 °C(DS-PWA32-HS(433MHz)、DS-PD1-MC-WWS(H)(433M)、DS-19K00-Y(433MHz)） ‘-10℃~+40℃ (DS-PD2-P10P-W(433MHz))
- Operation Humidity10% to 90%
- Shell MaterialPC+ABS
- Dimension(WxHxD)155 × 155 × 35mm(DS-PWA32-HS(433MHz)) 117mm× 69mm× 50mm (DS-PD2-P10P-W(433MHz)) 84mm x 25mm x 20.99mm(DS-PD1-MC-WWS(H)(433M)）63mm x 49mm x 16mm(DS-19K00-Y(433MHz))
- 125g (DS-PD2-P10P-W(433MHz)) 37g(DS-PD1-MC-WWS(H)(433M)） 24.5g(DS-19K00-Y(433MHz))
- Application Scenarioindoor
- ColorWhite
- Installation Height1.8m ~ 2.4m(DS-PD2-P10P-W(433MHz))
- BracketIncluding 1 x Ceiling mounting bracket, 1 x Wall mounting bracket, used by DS-PD2-P10P-W(435MHz)
- Audio
- Audio Output1, 1.5W
- Device Management
- Keyfob8
- Wireless Siren4
- Tag Reader4
- Keypad4
